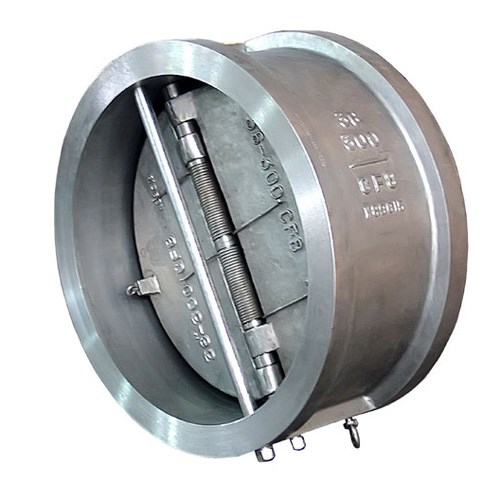

Wafer Type Check Valve-Products - WENZHOU KEBEI VALVE CO., LTD.

+86-577-67356570

Contact Now

Remark

Technical specifications

Size: NPS 2"-42"

Pressure: Class 150LBS-900LBS

Body Material: WCB,LCB,WC6,WC9,C12,C5,CF8,CF3,CF3M,CF8M,etc

Basic Standard:

Design & Manufacture Std.: API 6D, API594, ASME B16.34

Face to Face Std.: API 594, API 6D

End Connection Std.: ASME B16.5, ASME B16.47

Test Standard: ISO5208, API598, API 6D

Feature:

End Type: wafer, wafer plug, wafer flange

Disc Type: Double disc or Single disc

Light in weight and short in face to face dimension compared with traditional check valve; the disc closes quickly with less water hammer pressure

H76H/H76W/H76X-10-40C/P/R
Main external and connection dimension Unit:mm

DN	PN1.0(MPa)		WT (kg)	PN1.6(MPa)		WT (kg)	PN2.5(MPa)		WT (kg)	PN4.0(MPa)		WT (kg)
DN	L	D	WT (kg)	L	D	WT (kg)	L	D	WT (kg)	L	D	WT (kg)
H76H-10C H76W-10P H76W-10R H76H-16C H76W-16P H76W-16R H76H-25 H76W-25P H76W-25R H76H-40 H76Y-40P H76Y-40R
50	60	109	1.8	60	109	1.8	60	109	2	60	109	2.4
65	67	129	2.6	67	129	2.6	67	129	3.2	67	129	3.8
80	73	144	3.6	73	144	4.2	73	144	4.8	73	144	5.6
100	73	164	4.8	73	164	5.2	73	170	6	73	170	7.5
125	83	194	6.3	83	194	6.7	83	198	9	83	198	11
150	98	220	8.7	98	220	9.4	98	228	12	98	228	15
200	127	275	16.5	127	275	18.7	127	288	22	127	293	27
250	146	330	26.2	146	333	29.4	146	343	38	146	355	48
300	181	380	42.3	181	388	48.5	181	403	54	181	420	78
350	184	440	58	184	448	66	184	460	80	222	480	116
400	198	493	76	198	498	90	198	520	118	232	549	152
450	203	543	98	203	558	130	-	-	-	-	-	-
500	219	598	120	219	630	186	-	-	-	-	-	-
600	222	698	235	222	734	298	-	-	-	-	-	-

Main external and connection dimension Unit:mm
