Performance characteristics:
1, the fluid resistance is little, whether reducing or full size ball valve flow resistance coefficient is the smallest of all valve.
2, quick and convenient switch, usually only need to finish the full open or close rotates 90 ℃, truly achieve the rapid opening and closing.
3, sealed performance is good, the vast majority of ball valve seat all use the elastic materials such as ptfe, general this soft seal sealing is easy to guarantee, all widely used.
4, long service life, as a result of ptfe have good self-lubrication, friction and wear of ball valve stem and valve body is small, all greatly improve the service life of the ball valve.
5, high reliability, sphere and valve seat will not scratch, wear stem can't fly out sharply, fire prevention, anti-static function.
6, is widely used, in addition to the general media, but also conveying viscous fluid, slurry and solid particles.
7, a variety of rotating way, easily realizing remote operation and automatic control needs.
8, small volume, can be installed in the pipeline at any location, convenient installation, storage is also easy to transport.
Gauge DN15-6, 1 "Ф Ф 12.7-12.7-6"
Connection mode: fast loading, welding, thread, flange (chosen)
Genus: health level ball valve series.
Standards: ISO, DIN, IDF, SMS, 3 a, etc.
Material quality: stainless steel sus304 and sus316L.
Product quality: internal and external processing, with high-grade polishing equipment to meet the surface precision requirements.
Tight seal ring: EPDM, NBR, PTFE.
The package to: carton/plastic/wooden case packing.
Working pressure: 1.0 Mpa
Working temperature: - 10 ℃ to + 150 ℃
Application: apply to food, beverage, pharmaceutical, dairy products, beer, and fine chemical industry.
External processing: can according to user requirements to map, sample processing non-standard products.
Applicable medium: gas, liquid and steam.

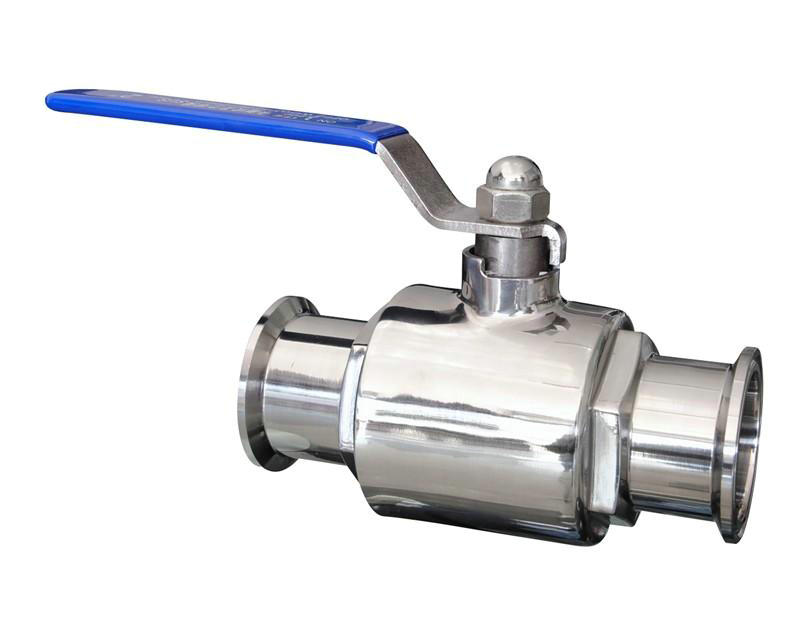

Stainless steel welded ball valve details
Connection: fast loading
Structure: the fixed ball ball valve
Nominal diameter: DN15-150 (mm)
Applicable medium: weak acid and alkali medium
Environment: high pressure
Working temperature: high temperature
Standard: GB, SH, HGJ, ISO, ANSI, DIN, QB, JB, 3 a, IDF
Flow direction: one way
Drive mode: manual
Spare parts and accessories: sphere
USES: safety
Type (channel) : straight through
Function: water
