Design Feature:

Bolted Bonnet or Pressure Seal Bonnet
Outside Screw & Yoke
Metal-to-metal seat, stellite overlay on wedge disc, seat and backseat
ISO top flange for any type of actuator or bevel gear.

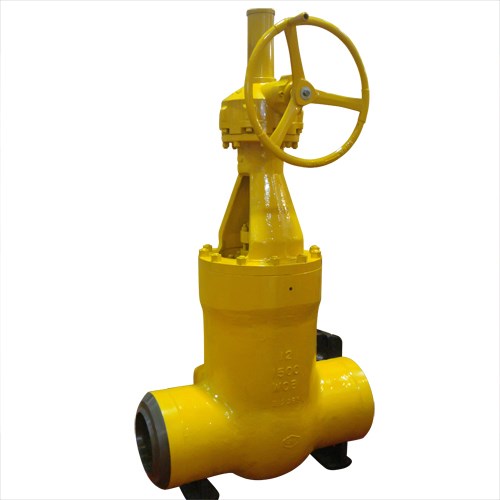

Flange end or Butt-weld end

Body material Options:

Pressure rating:

Applicable Standards:
Gate Valve: API600
Steel Valves: ASME B16.34
Face to Face: ASME B16.10
End Flanges: ASME B16.5/ASME B16.47
Butt Welding ends: ASME B16.25
Inspection and Test: API 598

Operation Options:

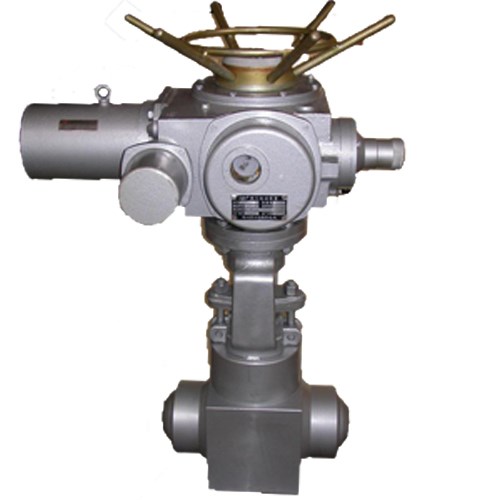

Handwheel/Bevel Gear/ Pneumatic/Electric actuator
