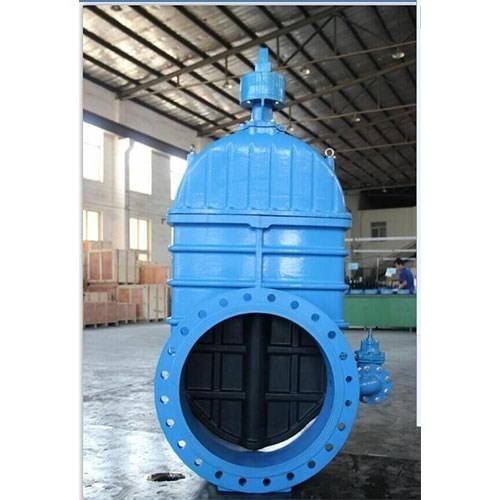

Cast iron Gate Valve with planetary gear
Sizes Range:
DN 50~900mm,
Design Feature:
Bolted Bonnet
Rising stem
Soft seat or Metal seat;
Planetary gear for extended shaft and lever operator.
Flange ends
Body material Options:
GG25, GGG40, GGG50
Seat material Options:
EPDM, NBR, Brass, Bronze
Pressure rating:
PN 10 or PN16
Applicable Standards:
Design: BS5163 , DIN3352-F4, DIN3352-F5
Face to Face: BS5163, DIN3202-F4, EN558-14, DIN3202-F5, EN558-15
Operation Options:
Handwheel/Bevel Gear/Planetary gear/ Pneumatic/Electric actuator
